High Purity Carbon Graphite Rods Synthetic High Density Graphite Electrodes Blanks
Fine grain graphite rod
Fine-grained graphite rod material is made of high-quality calcined petroleum coke and modified coal raw materials through specific process formula and heat treatment, but the maximum particle size is only 0.8mm, which is a structural material.
Fine-grained graphite rod material is mainly used for processing graphite products used in high temperature or corrosive environments. After processing, the surface of the product is smooth and delicate, and its mechanical properties are good.
Product specifications, dimensions and tolerances can be processed according to the actual needs of customers.
- High purity
- High temperature resistance
- Corrossion resistance
- Mydrolysis resistance
- Wearing resistance
- Self-lubricationHigh purity
Physical Properties of Isostatic Graphite
| | Index | Bulk Density | Shore hardness | Resistivity | Flexural Strength | Compressive Strength | Thermal expansion coefficient | Ash |
| Category | | ≥g/cm3 | ≥HS | UΩ*m | ≥MPa | ≥MPa | 10-6/℃ | ≤ PPM |
| Cylinder | Grade A | 1.85 | 50 | 8-12 | 40 | 80 | 4.0 | 500/50 |
| Grade B | 1.8 | 45 | 8-12 | 35 | 70 | 3.8 | 500/50 |
| Grade C | 1.8 | 40 | 8-12 | 30 | 65 | 3.8 | 500/50 |
| Cuboid | Grade A | 1.85 | 55 | 8-12 | 45 | 90 | 4 | 500/50 |
| Grade B | 1.8 | 50 | 8-12 | 40 | 80 | 3.9 | 500/50 |
| Grade C | 1.8 | 40 | 8-12 | 35 | 70 | 3.8 | 500/50 |

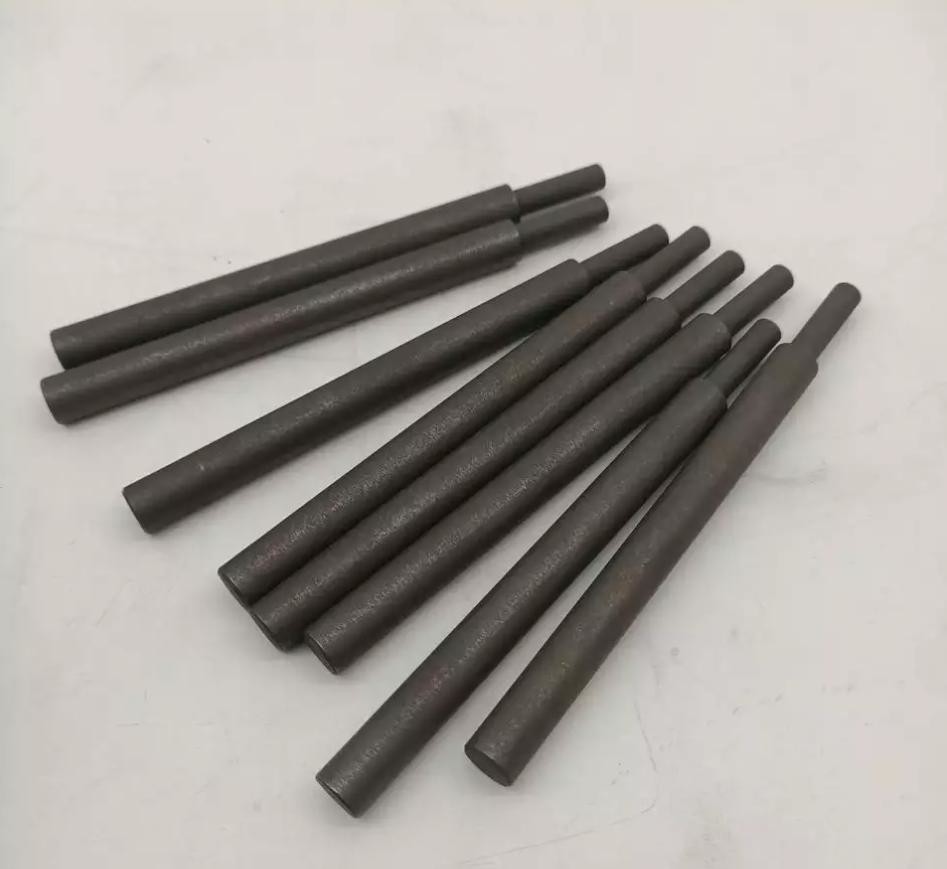

Product Photos
1.When can I get the price?
We usually quote within 24 hours after getting your detailed requirements,like size,quantity etc. .
2.Price?
Before inquiry us the price, please kindly send us the detailed requirements for the product you need. We will give our offers.
3.MOQ?
There is no MOQ limit.
4.Do you provide samples?
Yes, samples are available for you to check our quality.
5.What is your terms of delivery?
We accept FOB, CFR, CIF, EXW, etc. You can choose the most convenient way for you.
6.Product packaging?
Large product will be packed in wooden cases/pallets with steel strips,small products will be packed by cases, or according to your requirements.
