Automotive Air Pump Carbon Graphite Rotor Anti-Oxidation Epoxy Resin
Graphite for Mechanical Usage
1. Self lubrication.
2. High temperature resistance.
3. Chemical Stability.
4. Heat shock resistance.
5. Conductive to Lightweight Design.
Application
Graphite materials used for mechanical automotive,electrical,petrochemical and machinery industries,to provide the necessarycarbon graphite components;mainly used in dry rotary vane compressors and vacuum pumps;rotary compressor,screw compressor,fan,and the radial axis with sealing ring and sealingrings;oil-free piston compressor sealed with graphite piston and rod guide ring;mechanical seals,axial end with ball valveseals;liquid medium transmission with graphite bearings,seals,combination seals,rotary vane,rotor and hub and so on.
Our Metal or Resin Impregnated Graphite Parts are widely used in equipments of modern industry, such as seal rings for centrifugal pumps reacting kettle for chemical engineering, hydraulic generators and rotate baking furnaces; piston rings and bushings for compressors oxygen machines and bellows, bearings for screen motors and other types of instruments; slides for motors, subways and mine brushes of electrical machinery and slides for trolleybuses, etc.
Physical Properties of Isostatic Graphite
| Category | Model | Impregnant | Shore Hardess | Flexural Strength | Compressive Strength | Porosity | Bulk Density | Thermal expansion coeffcient | Temp. |
| ≥ | `X | ≥MPa | `X | ≥MPa | `X | ≤% | g/cm3 | 10-6/℃ | ℃ |
| Graphite | M120 | - | 60 | - | 25 | - | 81 | - | 18 | 1.6 | 4 | 350 |
| M154 | - | 40 | - | 20 | - | 40 | - | 28 | 1.42 | - | 350 |
| M254 | - | 10 | - | 25 | - | 45 | - | 25 | 1.65 | 3.4 | 450 |
| Impregnated resin carbon graphite | M106H | Epoxy resin | 75 | 90 | 51 | 60 | 180 | 190 | 1.0 | 1.62 | 4.8 | 200 |
| M238H | 40 | 55 | 39 | 50 | 78 | 110 | 1.0 | 1.85 | 4.5 | 250 |
| M255H | 40 | 50 | 34 | 45 | 78 | 90 | 1.0 | 1.8 | 4.5 | 200 |
| M106K | Furan resin | 80 | 95 | 55 | 65 | 200 | 210 | 2.0 | 1.62 | - | 200 |
| M120K | 75 | 95 | 50 | 60 | 190 | 195 | 2.0 | 1.7 | | 200 |
| M154K | 60 | | 35 | | 70 | | 6.0 | 1.6 | | 200 |
| M158K | 80 | 90 | 54 | 60 | 200 | 210 | 1.2 | 1.65 | - | 200 |
| Impregnated metal carbon graphite | M106D | Antimony alloy | 75 | - | 55 | 65 | 170 | 190 | 3 | 2.2 | 5.0 | 500 |
| M120D | 70 | - | 50 | 60 | 140 | 160 | 3 | 2.2 | 5.0 | 500 |
| M254D | 35 | - | 35 | - | 65 | - | 3 | 2.2 | 4.5 | 500 |
| M120P | Copper alloy | 65 | - | 65 | - | 200 | - | 3 | 2.4 | - | 400 |
| Impregnated glass carbon graphite | M106R | Glass | 110 | - | 75 | - | 210 | - | 1.5 | 1.9 | 4.67 | 600 |
| M120R | 95 | - | 57 | - | 190 | - | 1.5 | 1.9 | 4.67 | 600 |
| M254R | 65 | - | 55 | - | 100 | - | 1.5 | 1.9 | - | 600 |
| M262R | 75 | - | 48 | - | 138 | - | 1.5 | 1.9 | - | 600 |

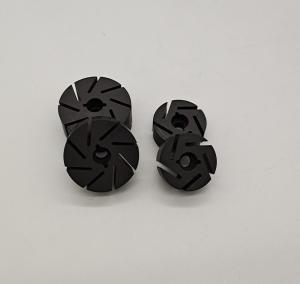

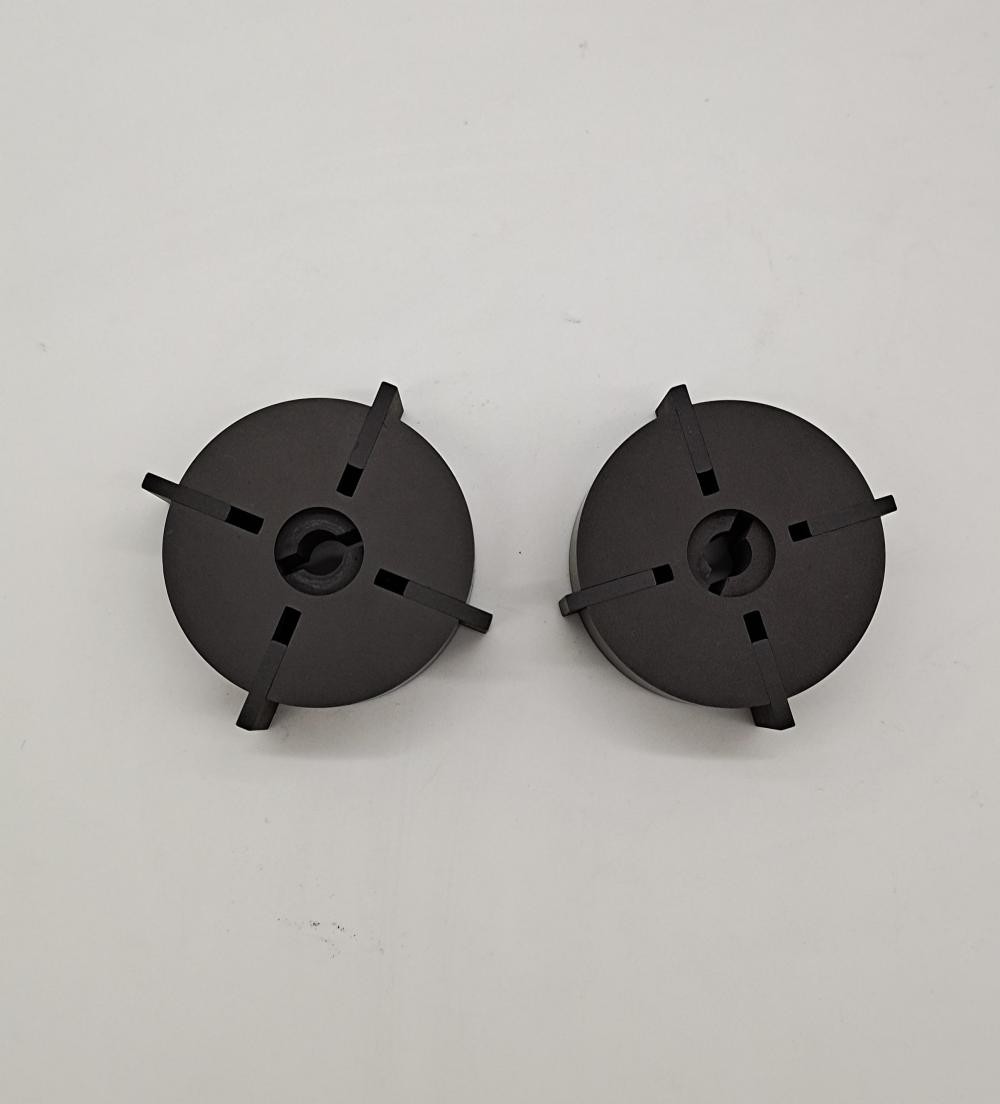

Photos of Product
DELIVERY TIME:
15-20 days after confirming order,detail delivery date should be decided according toproduction season and order quantity
FAQ
What is your MOQ?
There is no limit for MOQ.
When can i get the price?
We usually quote within 24 hours after getting your detailed requirements,like size, quantity etc.
Do you provide samples?
Yes, samples are available for you to check our quality. it will on your expense.
What about the lead time for mass product?
The lead time is based on the quantity, 25-30 days for regular products.
What is your terms of delivery?
We accept FOB, CFR, CIF, EXW, etc. You can choose the most convenient way for you.
What can you buy from us?
Carbon graphite bushings & bearings, seals, rods, plates,vanes.
